Topaz Studio Intuitive Masking

If you’re anything like me, you’ve struggled with perfecting masks at some point of you’re life.  I’ll admit, I’m a perfectionist and I want to be able to apply masks exactly where I want them. Nothing is more frustrating than having a vision and not being able to accomplish it. I’m not talking about those images you look at and think “something’s missing.” I am talking about those images when you know the exact creative direction you want. You are unable to achieve it because your current software contains way too many tools that require too much time to develop the technical know-how. You’d rather spend that time out shooting!

Topaz Studio’s intuitive masking was created with the photographer in mind. Easy-to-use intuitive tools that allow you to choose from 5 types of masking and then combine masking options for perfectly masked adjustments. Our masking is seamlessly integrated into Topaz Studio to streamline your workflow.

And We’re Giving it Away! Yep, you read that right. You’ll get complete freedom to use Topaz Studio’s comprehensive masking, as well as 10 free adjustments, opacity slider, blending modes plus full functionality to use it as plugin, a host editor for all Topaz Labs existing products, and standalone  all for free. If you’d like to learn more about all the free functionality within Topaz Studio, checkout our What’s Free? article.[/vc_column_text][/vc_column][/vc_row]

Download Now

Not Familiar with Topaz Studio?

Topaz Studio is a fast, flexible, powerful creative toolbox and it’s the next level image editor for photographers. Topaz Studio gives you lightning fast results with Topaz’s exclusive image processing technology, in an intuitive, affordable, easy to use application. You can learn more about Topaz Studio in the Announcement and Overview article.

“This is all your Topaz products wrapped into one program.”

What exactly is Masking?

If you are just getting your feet wet in the photography world, don’t worry! Everyone has asked that question at some point. Masking allows you to selectively make adjustments on your image. Let’s say you want to bring out the details in your granddaughter’s hair, but don’t necessarily want to bring out all the details of her skin, like her pores. Masking is great for that. Masking allows you to enhance part of the image, without being forced to make that same edit to the overall image. You also have the choice of varying mask densities. A black (0.00) density mask will completely remove the effect, while a white (1.00) density mask will allow an effect to completely remain. You can tune the range in between those values to achieve your desired effect.

Masking Made Simple

Topaz Studio Interface

The Topaz Studio Integrated Masking is unlike anything you have seen before. We have included 5 masking types: Brush, Spot, Gradient, Color, and Luminosity, as well as a Mask Adjustments panel and an option to invert or completely reset your mask. Our brush masking includes intuitive, content-aware technology that was developed in house. I’ve gotten the chance to play with it quite a bit –  it’s awesome and a complete time saver to say the least! Not only are the new masking features awe-inspiring, but you can now combine masking types. After making adjustments with one type of mask, click apply or switch to another mask type and build upon that mask. It’s never been so easy!

1. Global and Adjustment Level Masking

Topaz Studio Adjustment Level Masking

In Topaz Studio, we wanted to give you full control, so we have included both Global Masking and Adjustment Level Masking. Each has the exact same functions, but Global Masking will effect your entire image while, Adjustment Level Masking will only effect that one Adjustment.

2. How to create a Mask

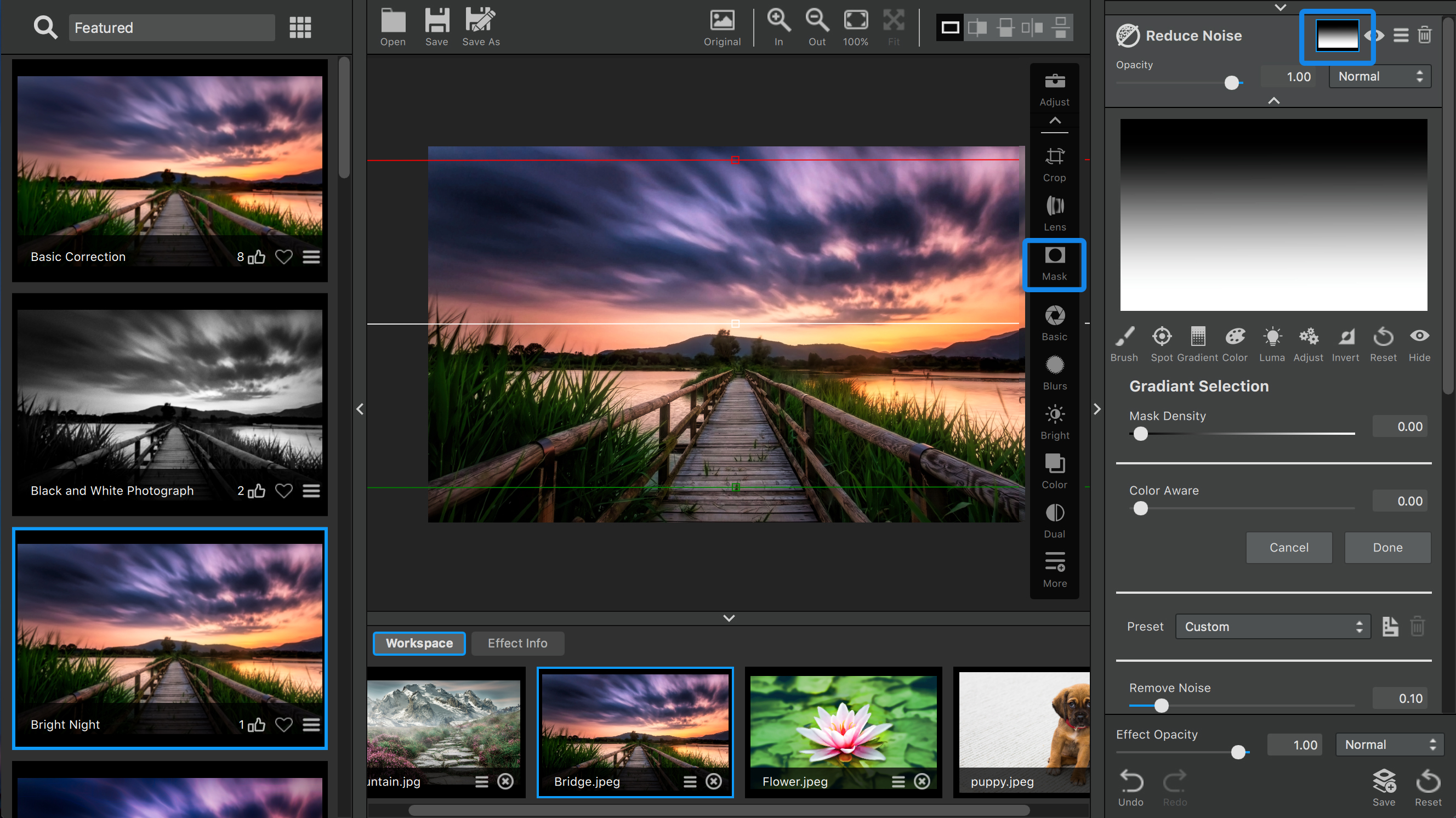

Global and Local Masking

How to Select Global or Adjustment Level Masking. To edit your Global Mask, select the icon (left icon) from the Adjustment Toolbar or from the Topaz Studio menu bar,  select Tools > Mask Effect. To edit your Adjustment Level Masking, click on the mask thumbnail (right icon) in the Adjustment to expand the masking panel.

3. Brush Masking

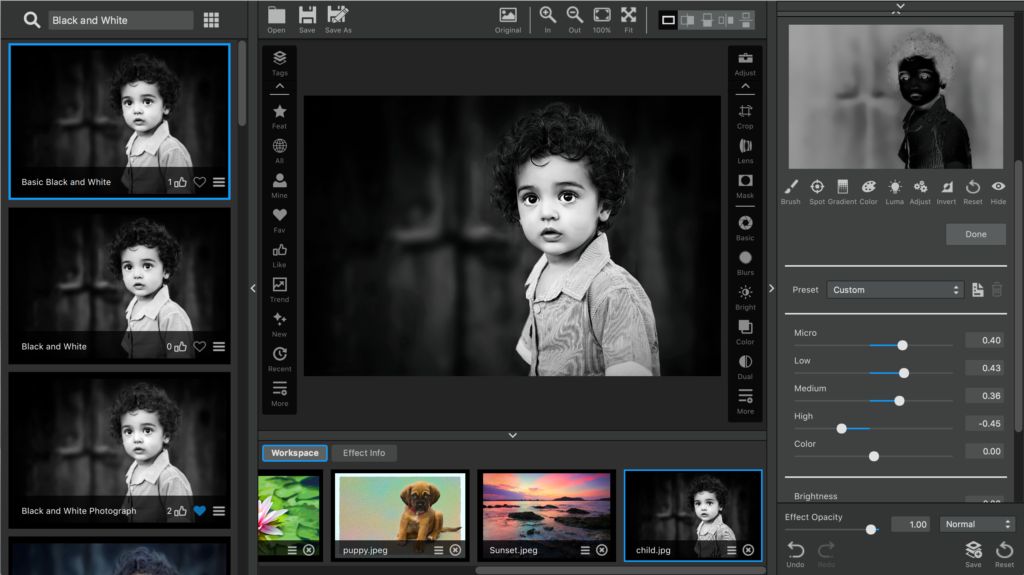

Topaz Studio Brush Masking

Brush Masking works great to apply effects exactly where you need them to be placed. You can paint in or paint out just one adjustment or entire effects with the global masking. In the Brush Mask Panel, you will find many easy to use controls. The Mask Density slider controls the opacity of your brush from 0.00 to 1.00. The Radius Slider controls the overall size, while the Softness Slider controls edge softness. The Edge Aware toggle allows you turn on or off our unique Edge Aware technology.

Edge Aware

Topaz Studio Brush Mask

Topaz Studio exclusive Edge Aware technology. Our unique edge aware technology allows you to effortlessly perfect masks. Simply keep the edge that you wish to be detected between the red inner circle and the green outer circle. Our technology will automatically detect the edge. It’s that easy.

4. Spot Masking

Topaz Studio Spot Mask

The Spot Mask tool allows you to add eclipse shaped masks to your image. Easily adjust the size and shape of your Spot Mask with the on screen manipulation tools. The Spot Mask Adjustment Panel allows you to adjust the Mask Density, Transition, and Color Aware with easy-to-use sliders. If you wish to add more than one Spot Mask to your image, simply click done and then click the spot mask again to add a second mask.

5. Gradient Mask

Topaz Studio Gradient Masking

The Gradient Mask allows you to create natural transitions. To add a Gradient Mask, simply click the gradient icon. When the gradient mask is added you will see three lines – a red, white, and green. Anything above the red line will be completely removed and anything below the green line will completely remain. You can manipulate the gradient on screen by grabbing the handles. The white handle will move the entire gradient, while moving the green or red handle can create longer and shorter transitions. You also have the power to manipulate it to have it going any direction you wish, such as mirrored or vertical. You can increase the Content Aware Slider or add more than one Gradient Mask to create interesting effects.

6. Color Masking

Topaz Studio Color Mask

The Color Mask allows you to create masks based upon colors found in your image. You can select a color by moving the Hue Slider. Whatever hue you select, will be masked out. The Range Slider allows you to capture a larger range or smaller range of colors. If you wish to have a more natural selection, use a larger range, but if you wish for a more precise selection, use a smaller range. If you wish for the hue you selected to remain, simply invert the mask once you are satisfied with your edits.

7. Luminosity Masking

Topaz Studio Luminosity Masking

Luminosity Masking allows you to make masking selections based upon the brightness of you image. You can select the brightness you would wish to be masked using the Luminosity Slider. The range slider allows you to adjust if you would like smoother or more precise selection.

8. The Adjustment Panel

Topaz Studio Masking Adjustment Panel

The Adjustment Panel is where you can modify the mask you just created. You can change the feathering to be a smoother transition, as well as the contrast and density to create more drastic or less drastic masking transitions. These are all dependent on the look you wish to achieve. When you are satisfied with your adjustments to your mask, all you have to do is click done to burn your mask in.

9. Masking Tools

Masking Tools

Invert, Reset, and Hide. You have the ability to completely invert, reset, and hide your mask all from the Masking Panel. Inverting a mask can be great for creating unique effects or in the various ways stated earlier in section 2 & 4. If you’re not happy with your mask, you can always reset it and start fresh. If you’d like to see how a particular mask effected your image, feel free to hide and unhide the mask to make comparisons.

10. Combining Multiple Masks

Applying a Luminosity and Gradient Mask

There is something very unique about the Topaz Studio Masking. We allow you to combine multiple types of masks. For example, you could create a luminosity mask, but then perfect it by adding a gradient mask. Add multiple masks of the same type or combine all 5! To combine multiple masking options, all you have to do is click done after you have completed one type and then move on to the next type of masking. There are no limits to what you can do. Creating perfect masks has never been so fast…or easy.

From Start to Finish

Here’s a quick walk through of what I did to create the mountain and valley image. I added these presets one by one and tweaked each one for this image. To make everyone’s life a little easier, I have shared this preset to the community as Intro to Masking. You can search for this effect in the Effects Panel on the left-hand side of the application. When this effect is initially applied, it won’t look like the final image until you add a few masks. If you wish to follow along with the same image, you can download it here.

You can also watch the entire tutorial by clicking play on the video below. Enjoy!

Open Your Image

First things First. Open your image into Topaz Studio. You can do this by simply dragging and dropping or by using the File > Open Image.. function in the top menu bar.

Search for the Effect

Search the Topaz Studio Community

When you open your image, you will see a list of presets on the left-hand side of your screen. Search for Intro to Masking and hit Enter. Click on the Effect to apply it to your image. Once applied,  you will see the adjustment stack populate on the right hand side. We will be working with the adjustment stack on the right-hand side for the remainder of this tutorial.

Masking the Dehaze Adjustment

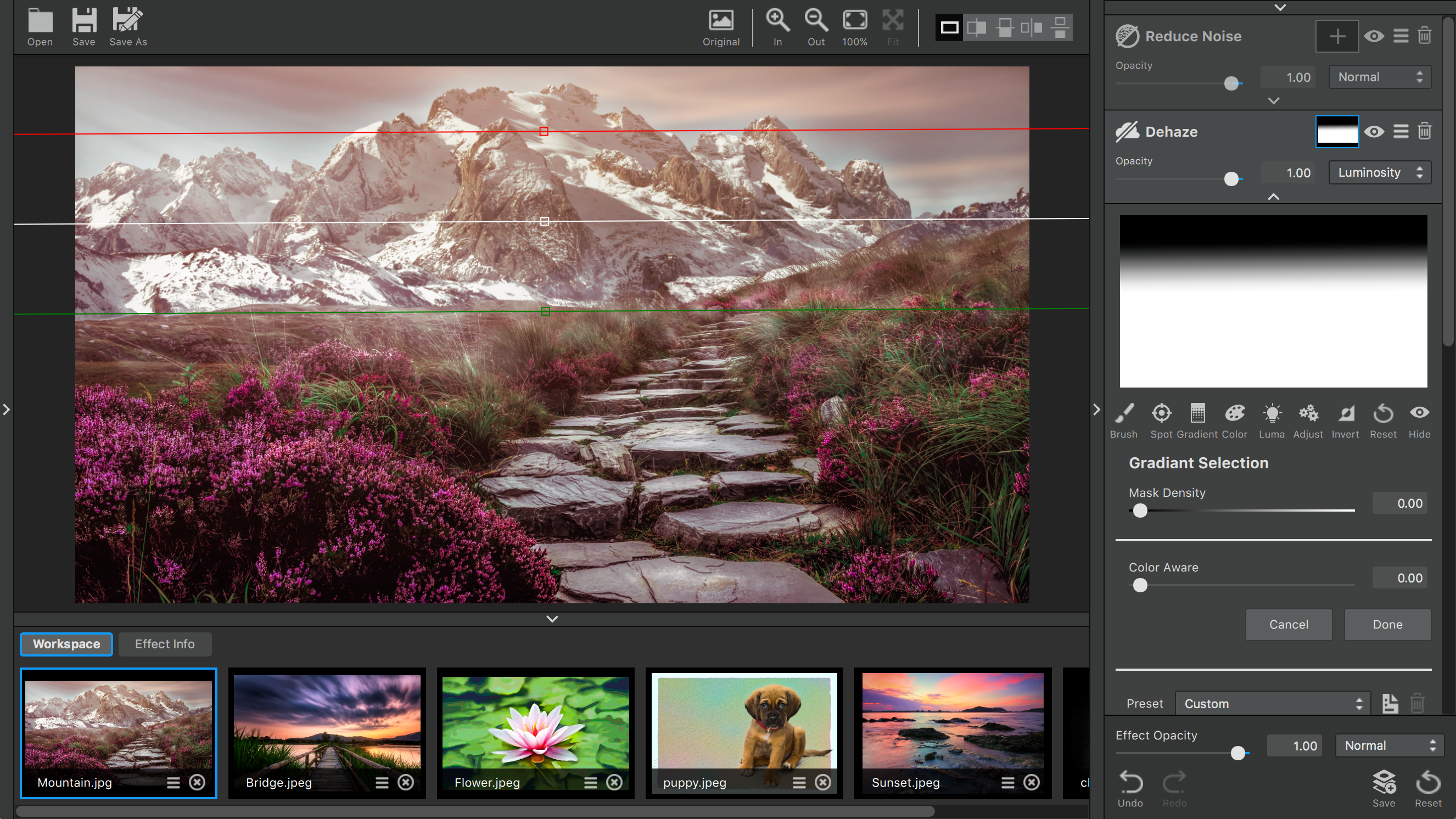

Applying a Gradient Mask to the DeHaze Adjustment

Select the Dehaze Adjustment’s Masking thumbnail (the box with the + sign). This will automatically expand the Masking Panel. I applied a gradient mask that was black at the top that transitioned to white towards the base of the mountains. I wanted the Dehaze Adjustment to effect the hazy valley, but not the mountain or flowers. When you are satisfied with your mask, click done to close the Masking Panel.

Masking the Basic Adjustment

Applying a Gradient Mask to the DeHaze Adjustment

Next, select the Basic Adjustment’s Masking thumbnail.  For this mask, I used a Luminosity Mask. I set the luminosity to 0.76 and the range to 0.12. This brought a little bit of the highlights back into the image. When you are satisfied with your mask, click done to close the Masking Panel.

Masking the Texture Adjustment

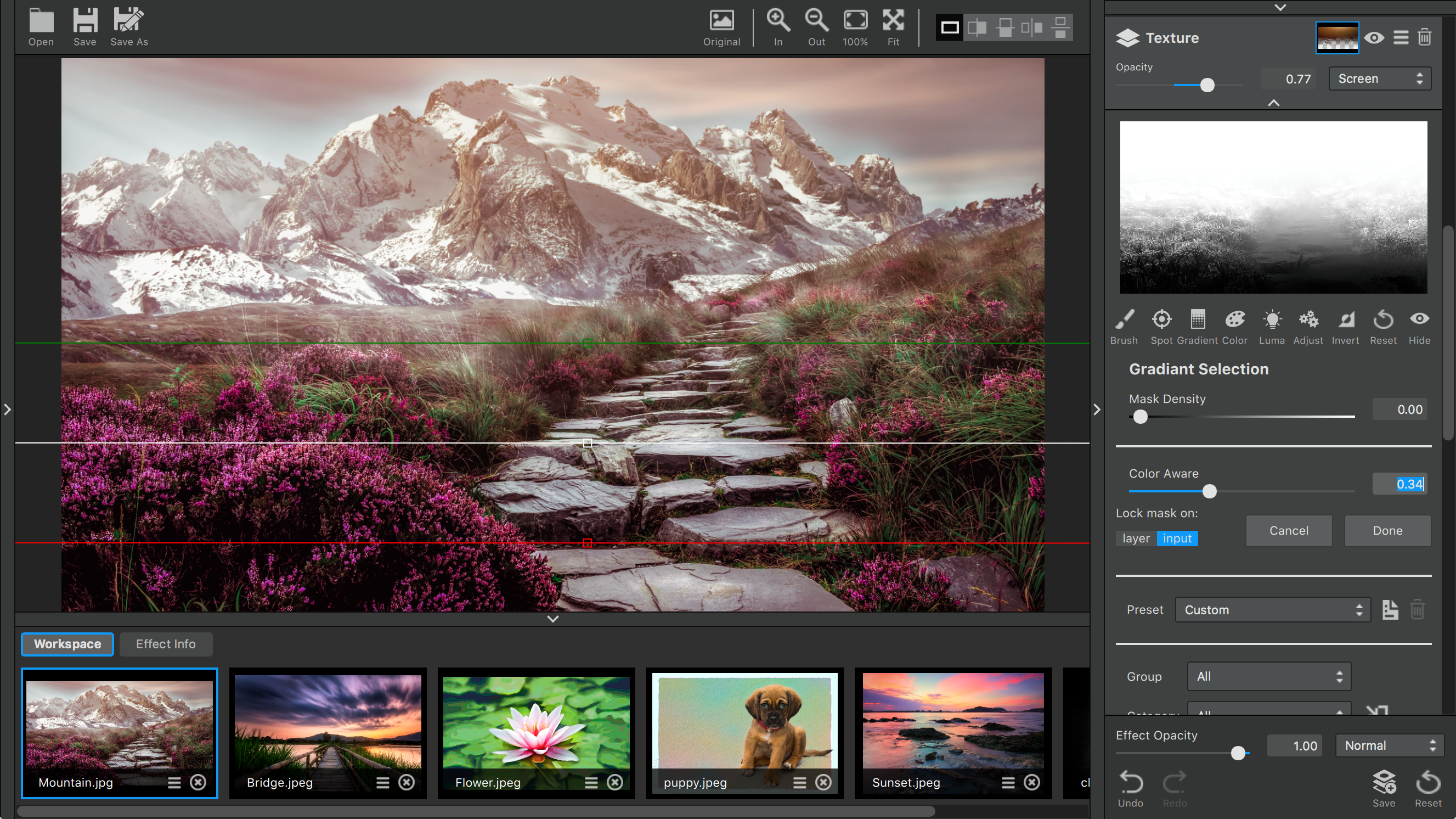

Applying a Gradient Mask to the Texture Adjustment

Finally, on the Texture Adjustment, I applied another gradient mask towards on the bottom of the image that fades to white at the top. I wanted the top of the mountain to be warm and have a slight glow effect, but I didn’t want to wash out the grass and flowers below. I changed the mask to lock onto the input image, which means that it will use the mountain image as a reference and not the Texture Adjustment. I also changed the content aware value to 0.34, to create a more natural transition. I then clicked done to close my Masking panel.

Other Tweaks

I was satisfied with the edit after that, but this preset may not be perfect for every image right out of the box. There may be some more tweaking needed. I would suggest making further edits in the Basic Adjustment, Brightness Contrast, and Tone Curves Adjustment to perfect this preset for your image. Feel free to add more adjustments to create even more interesting effects. Here’s the before and after! Pretty amazing results for an edit that was done in a matter of minutes.

Mountain - Before Topaz Studio


Mountain - Intro to Masking Effect

Intro to Masking Effect

That’s all for today…

That’s a wrap! While I have touched on every aspect of Topaz Studio Masking, this is only a few things that are possible with it. As you play with it more, I know you will discover new, awesome ways to use it.

Stay tuned! We will be adding lots of tutorials and videos, so keep your eye out if you’d like to learn more!

If you’d like to share your images with us, tag us on Instagram with @topazlabs and Twitter with @topazlabs. We’re also on Facebook and YouTube!

Download Now

If we’ve got you sold on Topaz Studio, you can download it for free using the buttons below.

About Taylor L. Seaton

Topaz Labs - Taylor L. Seaton

Taylor Seaton is a 2016 graduate from Angelo State University. While attending ASU, she obtained her Bachelor of Fine Arts with a concentration in Graphic Design and an area of emphasis in Business Management and Marketing. She also played volleyball at the collegiate level. She is currently the Social Media Manager at Topaz Labs.

Share on facebook
Share on twitter
Share on linkedin
Share on email

Related Posts

28 thoughts on “Topaz Studio Intuitive Masking

  1. Primeiramente, parabéns a Taylor Seaton, tão jovem e tão capacitada e eficiente.
    Baixei o Topaz Studio standard, se gostar comprarei a versão pró.
    Parabéns a Topaz Labs pelo desenvolvimento de excelentes plugins.

  2. Looks wonderful. I want to get away from using Lightroom and photoshop. Will it stitch multiple photos to create panamas and will it combine photos for HDR.
    If so will be thrilled
    Thanks for the good work you do

  3. You guys have done such an awesome job on Topaz Studio!
    I purchased the pro pack.
    I love the fact that I can access my other Topaz plugins from inside Topaz studio.
    I’m really loving this program. Thanks Topaz – you’ve really got a hit with this one.
    Donna Couture

    1. So glad you’re enjoying it!

    2. hi,how come i can not see the photo on workflow (centre part), the both side adjustment tool can see it,let me know how ,thank you

      1. Hi Raymond. Please open a support ticket so that we may assist you:

  4. What are the system requirements for Topaz Studio?

      1. Thanks for your reply. Once again I can’t use one of the new Topaz products because I don’t have OpenGL3.3. I could use the original Glow, but not version 2, and of course I can’t use Impressionist. If I knew how to get Open GL3.3 I sure would, because Studio looks very interesting.

        1. Don,
          OpenGL is a subset of tools used by your GPU / Video Card. Sometimes updating drivers can allow you to use OpenGl 3.3 but you have to have a video card that supports it. If you’re on a desktop, you can get a compatible card for around $50 but if you’d like to see more information on OpenGL and if your card supports it we have an article on that here:

  5. how to you make general adjustments, and then add a mask to doom specific adjustments? whenever i add a mask, then the mask takes over the general adjustments i wanted to do and only applies it to the masked part

    1. Hello! There are two ways to add a mask. If you would like to add an overall mask, use the Mask Button in the Adjustment Buttons Bar (Step 2). If you would like to add a mask to a specific Adjustment, click the mask icon on that Adjustment (the first rectangle after the Adjustment Name).

  6. Well, this is the second day I’ve had Topaz Studio. There is a bit of a learning curve, so when I get a new program, I use it as a standalone first and try out all the options. No matter what I do, I cannot apply a texture, either in standalone mode or from Photoshop. ‘Sent a ticket about this, but have not had a reply.
    Using the same photo, I went back to Texture effects –no problem! Has anyone else had this issue?

    1. Hi Madalyn! That’s an interesting problem… Have you started a Pro Trial or bought the Pro Pack? Once you have access to the Adjustment you should be able to upload whatever you like (as long as it is a supported color profile and image type). If you continue to have issues or want immediate assistance, please submit a help ticket!

  7. Hi, I cannot get the brush mask to work on the “brightness / contrast” adjustment. It seems to work on the others just fine!

    1. Hello! Please open a support ticket so that we may look into this:

  8. Other than using Photoshop CC or Lightroom for printing the results from Topaz Studio, will Topaz Studio have means to print in future offerings?

    1. Hi William! You can always do Command P (Mac) to print. We won’t have a printer library set-up anytime soon. Great question!

  9. First of all: all of you at TopazLabs deserve congratulations. Studio is an exceptionally creative and useful contribution to image post-processing. While Topaz advertising understandably emphasizes the speed of the software, to me, the incredible masking capabilities are even more important. That said, my question is: what is the best way for us to evaluate the accuracy of a mask? For example, in Photoshop I can see the mask coloured in red superimposed on a full scale image. I can then easily edit the mask. In Studio are we limited to scrutinizing the miniature b&w image of the mask? I note that the red painting on the image disappears soon after it is generated when I create a mask. Is there a way of having it remain?
    My second question: Could you please better explain what is meant by locking a mask on a “layer” as opposed to locking it on the “input”?

    1. Although mask accuracy is not always important, sometimes it is. It’s essentially equivalent to the importance of an accurate selection. I’ve come up with a solution to my own question regarding evaluating mask accuracy. Here it is: place a yellow (or other colour) overlay on the image in Studio; create the mask for the colour overlay (the accuracy is easy to see because you see your “full size” image with the yellow colour overlay superimposed on it with the yellow colour disappearing where you brush); after you are satisfied with the mask, copy and paste it to whatever layer you wish. Finally, disable the colour overlay layer. This seems to work fine for me. Anyone see any issues?

  10. What I would like to be able to do in Topaz Studio is to cut an object out, save that object, and at a later date inserted into another photo, is that possible, if so what filter do I need to use.

  11. Anyone besides me have this problem with Mask? When I’m finished masking one photo, if I work on a second one, the brush adjustments don’t seem to work. The radius is as large as it can be and the slider doesn’t work to adjust the size back down. The softness doesn’t respond either. I have to close Studio and reopen it to get the brush to function properly. Just me??

    1. Peter,
      We haven’t heard for that occurring before if you could submit a tickets with screenshots we should be able to nail down what might be causing the issue.

  12. Go Rams! I’m glad to see an ASU grad working for one of my favorite software companies.

  13. How do I get rid of items in an image that I do not want to be there, such as the person in the canoe that appears and disappears in your ad?

  14. If I make a mistake using the brush, is there a way to make the brush do just the opposite so I can paint back in over the mistake without having to start all over? In lightRoom you can reverse the effect of a brush by holding down the Alt key, and the brush changes from having a + sign in the center of it to having a – sign in the center.


  15. Hi,
    I’ve just started with Topaz Studio, mainly to use “impression”. When I try to use one of the impression presets, the majority of the them in the list appear black, as if they haven’t loaded. When I double click one, the split image with the effect is also black, as if nothing had happened. Either it hasn’t loaded properly or I’m doing something wrong. Not finding it as intuitive as I expected, is there a tutorial video on how to use it?


    1. Hey Djjjk,
      Likely you’re using outdated video drivers, or you don’t meet the system requirements for Studio, and don’t have enough VRAM, you can read about the system requirements here:
